FPC フラッシュツール　-　製品ラインナップ　-　12.7㎜ 1/2 ソケットレンチ　-　ソケット

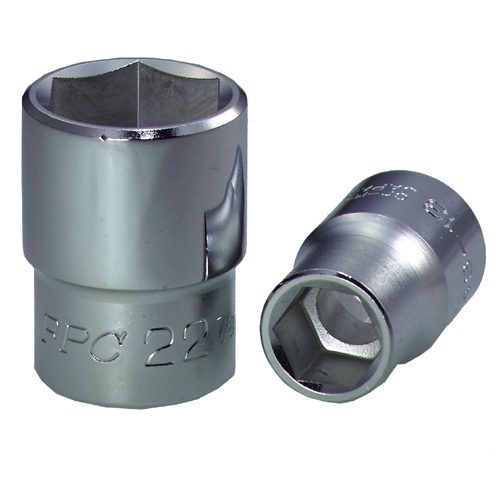

12.7（1/2")Sq. Drive Socket (6pt.)
Metric Size

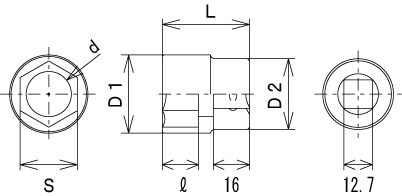

品番 Item No.	S	D1	ℓ	D2	L	d	重量 Weight	小箱入数	税抜希望小売価格 Price
4S- 8 5/16H	8 5/16	12.5	9	22	37	6	48g	10	¥790
4S- 9 H	9	13.5	9	22	37	6.5	49g	10	¥790
4S-10 H	10	14.5	9	22	37	7	50g	10	¥790
4S-11 7/16H	11 7/16	16	9	22	37	8	52g	10	¥810
4S-12 H	12	17.5	10	22	37	9	54g	10	¥810
4S-13 H	13	18.5	10	22	37	10	51g	10	¥810
4S-14 H	14	20	11	22	37	11	55g	10	¥810
4S-14.5 9/16H	14.5 9/16	20.5	11	22	37	11	57g	10	¥850
4S-15 19/32H	15 19/32	21	11	22	37	12	56g	10	¥850
4S-16 H	16	23	12	23	37	13	66g	10	¥850
4S-17 H	17	24	12	24	38	14	76g	10	¥850
4S-17.5 11/16H	17.5 11/16	24.5	12	24.5	38	14	80g	10	¥930
4S-18 H	18	25	12	25	38	15	81g	10	¥930
4S-19 3/4 H	19 3/4	26	14	24	38	16	76g	10	¥930
4S-20 25/32H	20 25/32	27.5	15	25	38	16	89g	10	¥970
4S-21 H	21	29	16	26	38	18	95g	10	¥970
4S-22 7/8 H	22 7/8	30	17	27	40	18	109g	10	¥1,010
4S-23 H	23	31	17	27	40	20	109g	10	¥1,010
4S-24 15/16H	24 15/16	32.5	18	28.5	40	20	124g	10	¥1,080
4S-25 H	25	33.8	18	30	40	20	136g	10	¥1,080
4S-26 H	26	35	20	31	42	22	152g	10	¥1,120
4S-27 1,1/16H	27 1,1/16	35.8	20	31	42	24	148g	10	¥1,240
4S-28 H	28	37.5	20	32.5	42	24	172g	10	¥1,380
4S-29 1,1/8 H	29 1,1/8	39	20	34	42	25	194g	10	¥1,460
4S-30 1,3/16H	30 1,3/16	39.8	22	34	44	25	199g	10	¥1,540
4S-31 H	31	41	22	35	44	25	208g	10	¥1,720
4S-32 1,1/4 H	32 1,1/4	43	22	36.5	44	27	241g	10	¥1,720
4S-33 1,5/16H	33 1,5/16	43.8	22	38	44	27	244g	10	¥2,100

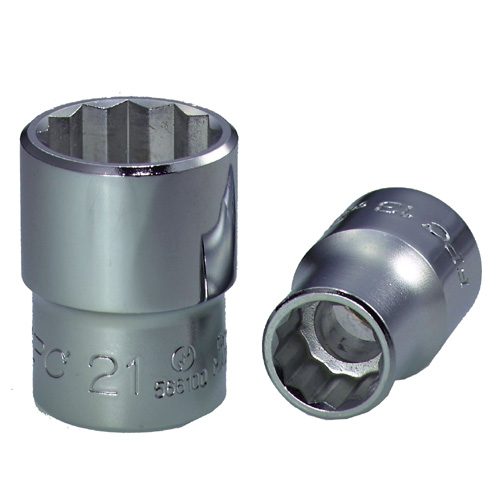

12.7（1/2")Sq. Drive Socket (12pt.)
Metric Size

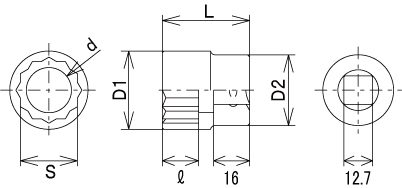

品番 Item No.	S	D1	ℓ	D2	L	d	重量 Weight	小箱入数	税抜希望小売価格 Price
4S- 8 5/16	8 5/16	12.5	9	22	37	6	48g	10	¥790
4S- 9	9	13.5	9	22	37	6.5	48g	10	¥790
4S-10	10	14.5	9	22	37	7	48g	10	¥790
4S-11 7/16	11 7/16	16	9	22	37	8	51g	10	¥810
4S-12	12	17.5	10	22	37	9	52g	10	¥810
4S-13	13	18.5	10	22	37	10	53g	10	¥810
4S-14	14	20	11	22	37	11	53g	10	¥810
4S-14.5 9/16	14.5 9/16	20.5	11	22	37	11	56g	10	¥850
4S-15 19/32	15 19/32	21	11	22	37	12	54g	10	¥850
4S-16	16	23	12	23	37	13	66g	10	¥850
4S-17	17	24	12	24	38	14	75g	10	¥850
4S-17.5 11/16	17.5 11/16	24.5	12	24.5	38	14	76g	10	¥930
4S-18	18	25	12	25	38	15	81g	10	¥930
4S-19 3/4	19 3/4	26	14	24	38	16	76g	10	¥930
4S-20 25/32	20 25/32	27.5	15	25	38	16	85g	10	¥970
4S-21	21	29	16	26	38	18	91g	10	¥970
4S-22 7/8	22 7/8	30	17	27	40	18	104g	10	¥1,010
4S-23	23	31	17	27	40	20	104g	10	¥1,010
4S-24 15/16	24 15/16	32.5	18	28.5	40	20	118g	10	¥1,080
4S-25	25	33.8	18	30	40	20	136g	10	¥1,080
4S-26	26	35	20	31	42	22	148g	10	¥1,120
4S-27 1,1/16	27 1,1/16	35.8	20	31	42	24	144g	10	¥1,240
4S-28	28	37.5	20	32.5	42	24	163g	10	¥1,380
4S-29 1,1/8	29 1,1/8	39	20	34	42	25	184g	10	¥1,460
4S-30 1,3/16	30 1,3/16	39.8	22	34	44	25	187g	10	¥1,540
4S-31	31	41	22	35	44	25	197g	10	¥1,720
4S-32 1,1/4	32 1,1/4	43	22	36.5	44	27	223g	10	¥1,720
4S-33 1,5/16	33 1,5/16	43.8	22	38	44	27	243g	10	¥2,100

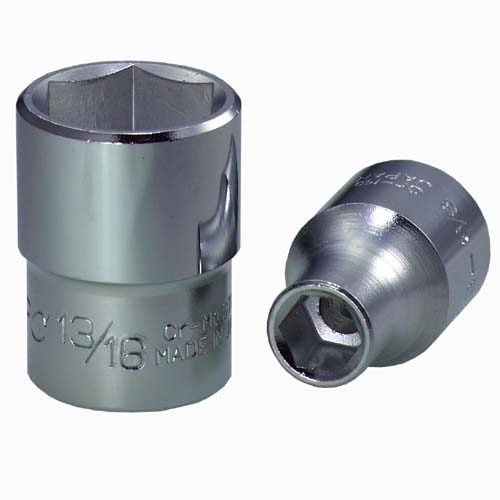

12.7（1/2")Sq. Drive Socket (6pt.)
Inch Size

品番 Item No.	S	D1	ℓ	D2	L	d	重量 Weight	小箱入数	税抜希望小売価格 Price
4S- 1/4 H	1/4	10.5	8	22	37	5.2	47g	10	¥820
4S- 5/16H	5/16	12.5	9	22	37	6	48g	10	¥820
4S- 11/32H	11/32	13.5	9	22	37	6.5	48g	10	¥820
4S- 3/8 H	3/8	14	9	22	37	9.5	53g	10	¥820
4S- 7/16H	7/16	16	9	22	37	8	52g	10	¥840
4S- 1/2 H	1/2	18	10	22	37	10	53g	10	¥840
4S- 17/32H	17/32	19.5	11	22	37	10	56g	10	¥840
4S- 9/16H	9/16	20.5	11	22	37	11	57g	10	¥900
4S- 19/32H	19/32	21	11	22	37	12	56g	10	¥900
4S- 5/8 H	5/8	23	12	23	37	13	64g	10	¥900
4S- 21/32H	21/32	23.5	12	23.5	38	14	70g	10	¥900
4S- 11/16H	11/16	24.5	12	24.5	38	14	80g	10	¥990
4S- 3/4 H	3/4	26	14	24	38	16	76g	10	¥990
4S- 25/32H	25/32	27.5	15	25	38	16	86g	10	¥1,020
4S- 13/16H	13/16	28.5	16	26	38	18	93g	10	¥1,020
4S- 7/8 H	7/8	30	17	27	40	18	109g	10	¥1,050
4S- 15/16H	15/16	32.5	18	28.5	40	20	124g	10	¥1,140
4S- 31/32H	31/32	33.5	18	30	40	20	137g	10	¥1,140
4S- 1/1 H	1/1	34.5	18	30.5	40	22	141g	10	¥1,180
4S-1,1/16H	1,1/16	35.8	20	31	42	24	148g	10	¥1,290
4S-1,1/8 H	1,1/8	39	20	34	42	25	194g	10	¥1,510
4S-1,3/16H	1,3/16	39.8	22	34	44	25	199g	10	¥1,620
4S-1,1/4 H	1,1/4	43	22	36.5	44	27	241g	10	¥1,810
4S-1,5/16H	1,5/16	43.8	22	38	44	27	244g	10	¥2,220

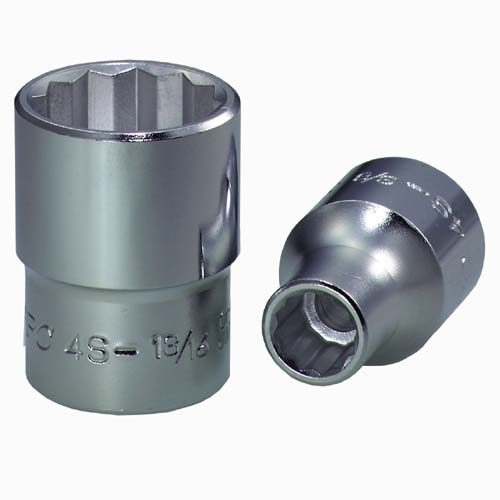

12.7（1/2")Sq. Drive Socket (12pt.)
Inch Size

品番 Item No.	S	D	ℓ	D2	L	d	重量 Weight	小箱入数	税抜希望小売価格 Price
4S- 1/4	1/4	10.5	8	22	37	5.2	48g	10	¥820
4S- 5/16	5/16	12.5	9	22	37	6	48g	10	¥820
4S- 11/32	11/32	13.5	9	22	37	6.5	53g	10	¥820
4S- 3/8	3/8	14	9	22	37	9.5	49g	10	¥820
4S- 7/16	7/16	16	9	22	37	8	51g	10	¥840
4S- 1/2	1/2	18	10	22	37	10	51g	10	¥840
4S- 17/32	17/32	19.5	11	22	37	10	58g	10	¥840
4S- 9/16	9/16	20.5	11	22	37	11	55g	10	¥900
4S- 19/32	19/32	21	11	22	37	12	54g	10	¥900
4S- 5/8	5/8	23	12	23	37	13	66g	10	¥900
4S- 21/32	21/32	23.5	12	23.5	38	14	68g	10	¥900
4S- 11/16	11/16	24.5	12	24.5	38	14	76g	10	¥990
4S- 3/4	3/4	26	14	24	38	16	75g	10	¥990
4S- 25/32	25/32	27.5	15	25	38	16	84g	10	¥1,020
4S- 13/16	13/16	28.5	16	26	38	18	88g	10	¥1,020
4S- 7/8	7/8	30	17	27	40	18	104g	10	¥1,050
4S- 15/16	15/16	32.5	18	28.5	40	20	114g	10	¥1,140
4S- 31/32	31/32	33.5	18	30	40	20	137g	10	¥1,140
4S- 1/1	1/1	34.5	18	30.5	40	22	139g	10	¥1,180
4S-1,1/16	1,1/16	35.8	20	31	42	24	143g	10	¥1,290
4S-1,1/8	1,1/8	39	20	34	42	25	184g	10	¥1,510
4S-1,3/16	1,3/16	39.8	22	34	44	25	200g	10	¥1,620
4S-1,1/4	1,1/4	43	22	36.5	44	27	223g	10	¥1,810
4S-1,5/16	1,5/16	43.8	22	38	44	27	243g	10	¥2,220

12.7（1/2")Sq. Drive Deep Socket (6pt.)

品番 Item No.	S	D1	ℓ	D2	L	d	重量 Weight	小箱入数	税抜希望小売価格 Price
4SD- 8H	8	12.5	10	21	80	6	85g	10	¥2,000
4SD- 9H	9	13.5	10.5	21	80	7	87g	10	¥2,000
4SD-10H	10	15	11.5	21	80	8	94g	10	¥2,000
4SD-11H	11	16	13	21	80	9	98g	10	¥2,000
4SD-12H	12	17.5	14.5	22	80	10	109g	10	¥2,090
4SD-13H	13	19	16	22	80	11	120g	10	¥2,090
4SD-14H	14	20	17	22	80	12	123g	10	¥2,190
4SD-15H	15	21	18	22	80	13	122g	10	¥2,280
4SD-16H	16	22.5	19	22.5	80	14	133g	10	¥2,280
4SD-17H	17	24	21	23	80	15	142g	10	¥2,280
4SD-18H	18	25	23	24	80	16	152g	10	¥2,330
4SD-19H	19	26.5	23	24	80	17	153g	5	¥2,330
4SD-20H	20	27.5	25	25	80	17	169g	5	¥2,440
4SD-21H	21	28.5	25	25	80	19	160g	5	¥2,440
4SD-22H	22	30	27	26	80	20	174g	5	¥2,580
4SD-23H	23	31	27	26	80	21	170g	5	¥2,720
4SD-24H	24	32.5	29	27	80	21.5	197g	4	¥2,870
4SD-25H	25	33.5	29	27	80	22	188g	4	¥3,050
4SD-26H	26	35	29	28	80	22.5	211g	4	¥3,050
4SD-27H	27	36	30	28	80	23	215g	4	¥3,220
4SD-28H	28	37	30	29	80	23.5	233g	4	¥3,570
4SD-29H	29	38.5	30	30	80	24	248g	4	¥3,570
4SD-30H	30	39.5	30	31	80	24.5	278g	4	¥3,700
4SD-31H	31	41	30	32	80	25	298g	4	¥3,970
4SD-32H	32	42	30	33	80	25.5	313g	3	¥3,970

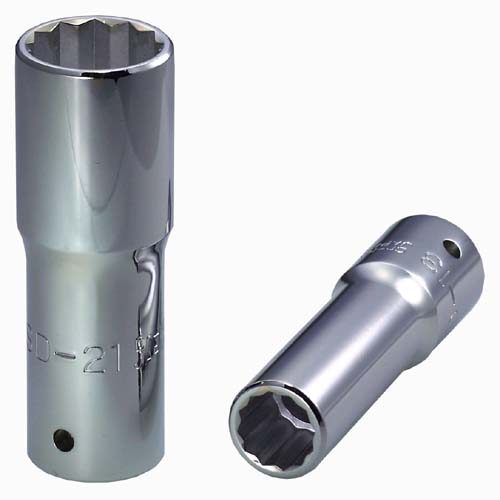

12.7（1/2")Sq. Drive Deep Socket (12pt.)

品番 Item No.	S	D1	ℓ	D2	L	d	重量 Weight	小箱入数	税抜希望小売価格 Price
4SD- 8	8	12.5	10	21	80	6	82g	10	¥2,000
4SD- 9	9	13.5	10.5	21	80	7	86g	10	¥2,000
4SD-10	10	15	11.5	21	80	8	94g	10	¥2,000
4SD-11	11	16	13	21	80	9	93g	10	¥2,000
4SD-12	12	17.5	14.5	22	80	10	109g	10	¥2,090
4SD-13	13	19	16	22	80	11	117g	10	¥2,090
4SD-14	14	20	17	22	80	12	120g	10	¥2,190
4SD-15	15	21	18	22	80	13	117g	10	¥2,280
4SD-16	16	22.5	19	22.5	80	14	131g	10	¥2,280
4SD-17	17	24	21	23	80	15	140g	10	¥2,280
4SD-18	18	25	23	24	80	16	146g	10	¥2,330
4SD-19	19	26.5	23	24	80	17	150g	5	¥2,330
4SD-20	20	27.5	25	25	80	17	153g	5	¥2,440
4SD-21	21	28.5	25	25	80	19	155g	5	¥2,440
4SD-22	22	30	27	26	80	20	172g	5	¥2,580
4SD-23	23	31	27	26	80	21	162g	5	¥2,720
4SD-24	24	32.5	29	27	80	21.5	185g	4	¥2,870
4SD-25	25	33.5	29	27	80	22	178g	4	¥3,050
4SD-26	26	35	29	28	80	22.5	210g	4	¥3,050
4SD-27	27	36	30	28	80	23	202g	4	¥3,220
4SD-28	28	37	30	29	80	23.5	214g	4	¥3,570
4SD-29	29	38.5	30	30	80	24	241g	4	¥3,570
4SD-30	30	39.5	30	31	80	24.5	259g	4	¥3,700
4SD-31	31	41	30	32	80	25	276g	4	¥3,970
4SD-32	32	42	30	33	80	25.5	297g	3	¥3,970

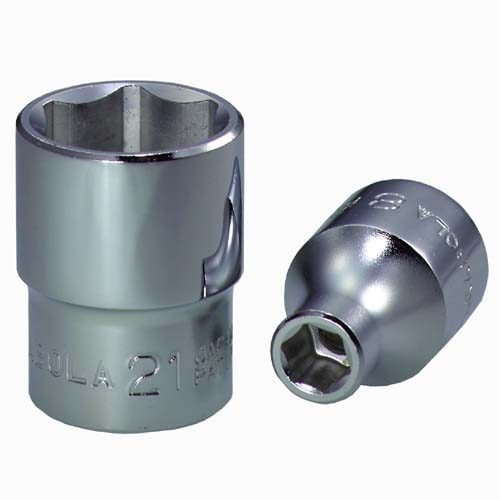

12.7（1/2"）Sq. Drive Slim Parabora Socket (6pt.)

品番 Item No.	S	D1	ℓ	D2	L	d	重量 Weight	小箱入数	税抜希望小売価格 Price
4SP- 8 H	8	12.5	9	22	37	6	47g	10	¥850
4SP- 9 H	9	13.5	9	22	37	6.5	47g	10	¥850
4SP-10 H	10	14.5	9	22	37	7	51g	10	¥850
4SP-11 H	11	16	9	22	37	8	51g	10	¥890
4SP-12 H	12	17.5	10	22	37	9	53g	10	¥890
4SP-13 H	13	18.5	10	22	37	10	54g	10	¥910
4SP-14 H	14	20	11	22	37	11	56g	10	¥910
4SP-14.5 H	14.5	20.5	11	22	37	11	57g	10	¥930
4SP-15 H	15	21	11	22	37	12	57g	10	¥930
4SP-16 H	16	23	12	23	38	13	66g	10	¥990
4SP-17 H	17	24	12	24	38	14	75g	10	¥990
4SP-17.5 H	17.5	24.5	12	24.5	38	14	77g	10	¥1,050
4SP-18 H	18	25	12	25	38	15	79g	10	¥1,050
4SP-19 H	19	26	14	24	38	16	75g	10	¥1,050
4SP-21 H	21	29	16	26	38	18	94g	10	¥1,070
4SP-22 H	22	30	17	27	40	18	100g	10	¥1,070
4SP-23 H	23	31	17	27	40	20	105g	10	¥1,140
4SP-24 H	24	32.5	18	28.5	40	20	122g	10	¥1,190
4SP-26 H	26	35	20	31	42	22	159g	10	¥1,240
4SP-27 H	27	35.8	20	31	42	22	151g	10	¥1,330
4SP-28 H	28	37.5	20	32.5	42	24	166g	10	¥1,470
4SP-29 H	29	39	20	34	42	25	191g	10	¥1,590
4SP-30 H	30	39.8	22	35	44	25	207g	10	¥1,680
4SP-32 H	32	43	22	37	44	27	241g	10	¥1,860
